Atom DAC 2

DACs

Atom DAC 2


(81 reviews)

$149.00

In Stock

  • Covered by our 2-year transferable warranty

All Metal, Custom Engravable, USB Type C

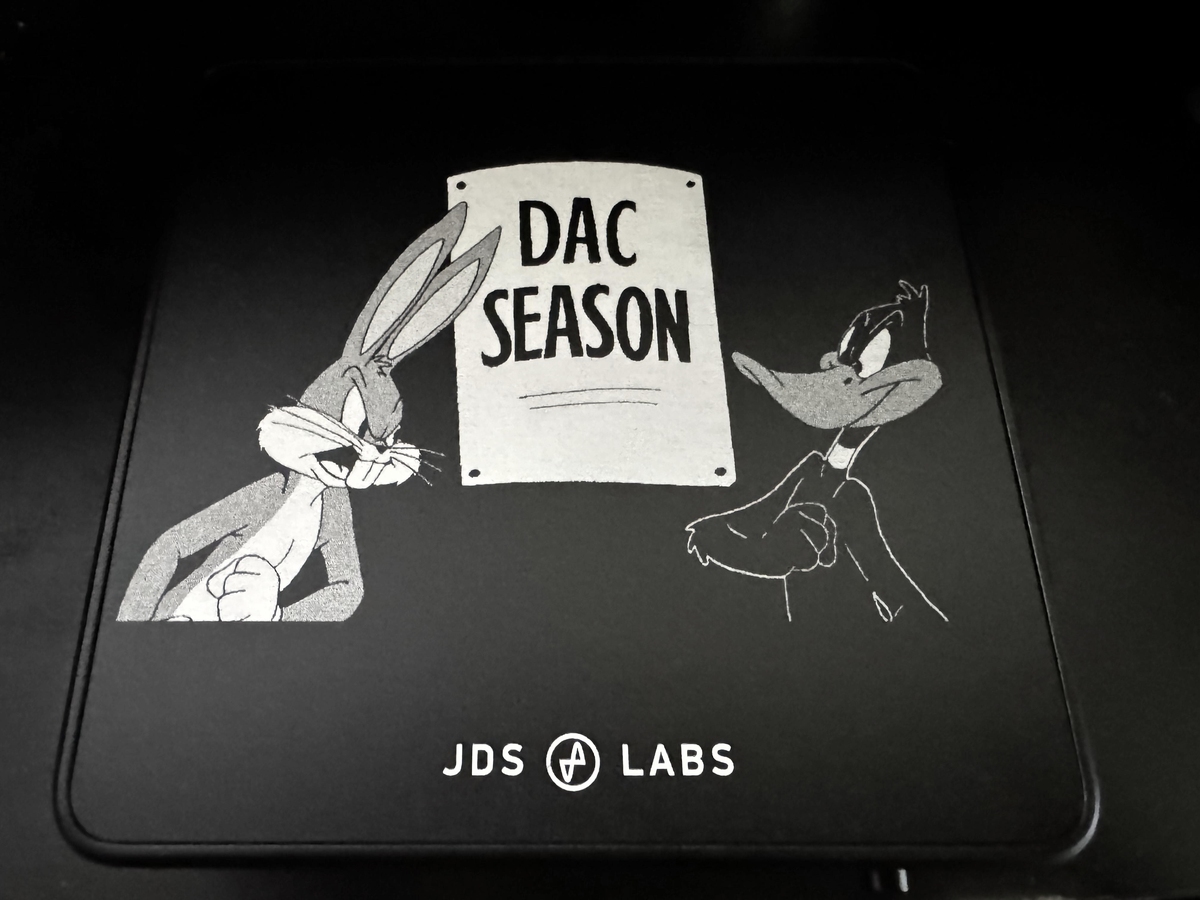

Atom DAC 2 helps your get the most out of your JDS Labs Atom Amp 2 or Atom Amp+, ensuring that your amp delivers its rated power. Equipped with USB Type C and TOSLINK inputs, Atom DAC 2 runs on our latest upgradeable XMOS-based firmware, supporting UAC2 and UAC1 fallback*. Its subtle light ring glows during use, automatically powers down during periods of inactivity, and wakes up instantly and silently. Additionally, Atom DAC 2 operates cooler due to a more efficient I/V stage, and its new aluminum enclosure is custom engravable!

Features

USB TYPE C

MORE EFFICIENT

MEMS OSCILLATOR

UPGRADEABLE FIRMWARE

AUTO STANDBY

DIFFERENTIAL SUMMING I/V OUTPUT

METAL ENCLOSURE

NO MORE ROCKER SWITCH!

Atom DAC 2

Customer Reviews

Questions & Answers

What cables do I need?

Atom DAC 2 ships with a USB A-to-C cable and power adapter, the essentials for connecting to a PC or Mac.

You may also need a set of RCA cables to connect to your amplifier, or a TOSLINK cable if you plan to connect to an optical (S/PDIF) audio source.

Do I need to install drivers?

No. Atom DAC 2 is plug-and-play on Windows 10/11, macOS, Linux, iOS and Android. Our optional XMOS drivers enable ASIO support.

Can I hook it up to my vintage receiver or powered speakers?

 Yes, Atom DAC 2 provides standard RCA line-level outputs at 2 VRMS.

  • Receiver: use any line input, such as AUX, CD or Tape. Don’t use PHONO.

  • Powered speakers: Control volume at your speakers, or use Atom Amp 2 as a preamp.

Will this work with my PS5 or Nintendo Switch?

Yes, you will need a UAC1 Fallback cable. PS4, PS5, Nintendo Switch and Switch 2 all require USB Audio Class 1 (UAC1). For TVs or consoles with an optical output, you may instead use a TOSLINK cable.

Atom Stack or Element IV?

An Atom stack is plenty if you only need more volume, or need to connect to an analog source such as a turntable. Element IV is an end-game experience. Soundstage is perfect. Core unlocks PEQ presets for your headphones, along with Crossfeed, Loudness, and adjustable stereo width. And Element IV's knob is unlike anything you will find elsewhere, with its discrete optical encoder and smooth feel.

Specifications

Performance

  • Frequency Response, 20Hz-20kHz +/- 0.12dB
  • SINAD @ 1kHz, 20-22.4kHz 113 dB
  • THD+N, 20Hz-20kHz < 0.0004%
  • SNR, 20Hz-20kHz 117 dB
  • IMD CCIF, 19/20 kHz -6 dBFS -105 dB
  • Noise, A-Weighted -111 dBV
  • Dynamic Range, AES17, A-Weighted 119 dB
  • Linearity Error -90 dBFS -0.05 dB
  • Crosstalk, 1kHz, 100k Input -121 dB
  • USB Jitter Components @ 12kHz -129 dB
  • Maximum DAC Line-Output, 100K 2 VRMS
  • PCB Stackup 4 Layers

Dimensions

  • Average Power Consumption 4W
  • Weight 15 oz (425 g)
  • Case Dimensions 131 x 130 x 34 mm (5.2 x 5.1 x 1.3 in)

Data Support

  • Audio Formats (USB) 16/44.1kHz thru 32/384kHz PCM, DSD64-DSD128
  • Audio Formats (TOSLINK) 16/44.1k thru 24/192k PCM
  • USB Interface UAC2 with UAC1 Fallback 1.
  • USB Driver OS Support Windows 7/8/10/11, macOS, Linux, Android, iOS, PS4/PS5, Nintendo Switch 2.

Connectivity

  • Digital Inputs USB Type C and TOSLINK
  • Line Output RCA
  • 1. UAC1 supported by USB Isolator, sold separately.
  • 2. Appropriate cables are required for Android, iOS, and PS5, and Win 7/8

Packaged Items

  • Atom DAC 2
  • 15VAC Power Supply → Please note current batch is labelled '14.5VAC 500mA'
  • USB C to USB A Cable w/Ferrite

Drivers

  • XMOS Driver v6.16 for Win 10/11

    This driver supports Windows 10/11 under x86/x64/arm64 and is optional. No drivers are required for macOS, Linux, or Windows 10/11.

    This driver enables ASIO support, provides the ability to view and adjust Buffer Settings (latency), supports 16/24/32-bit depths, and adds full DSD64-128 support to Atom DAC+, Atom DAC 2, EL DAC II+, Element III (MK2), and Element IV.

    All XMOS based JDS Labs DACs are supported, including:

    • Element IV
    • Element III (MK2)
    • Atom DAC 2
    • Atom DAC(+)
    • EL DAC II(+)
    • Element II



    This driver is developed and maintained by Thesycon, and licensed to JDS Labs. Please find the full change log at TUSBAudio_history.txt.

  • Optional - XMOS Firmware Update Utility (DFU) for Win 10/11

    This optional application for Windows 10/11 allows you to install firmware updates to XMOS based JDS Labs DACS, including:

    • Element III
    • Element II
    • EL DAC II(+)
    • Atom DAC(+)
    • Atom DAC 2

    To use, unzip the folder and follow instructions in the article How to Install an XMOS Firmware Update.
