All Metal, More Power, More Fun

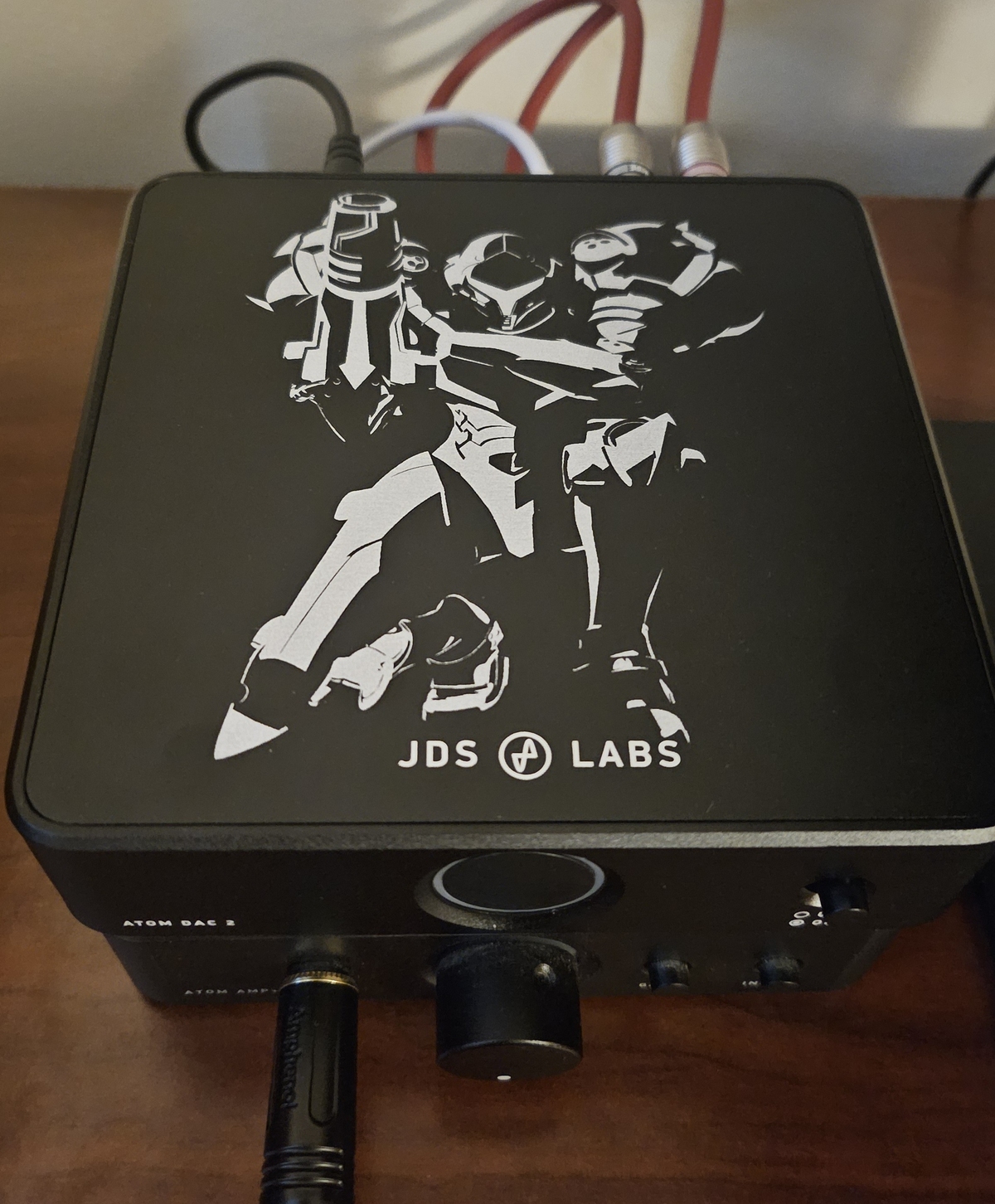

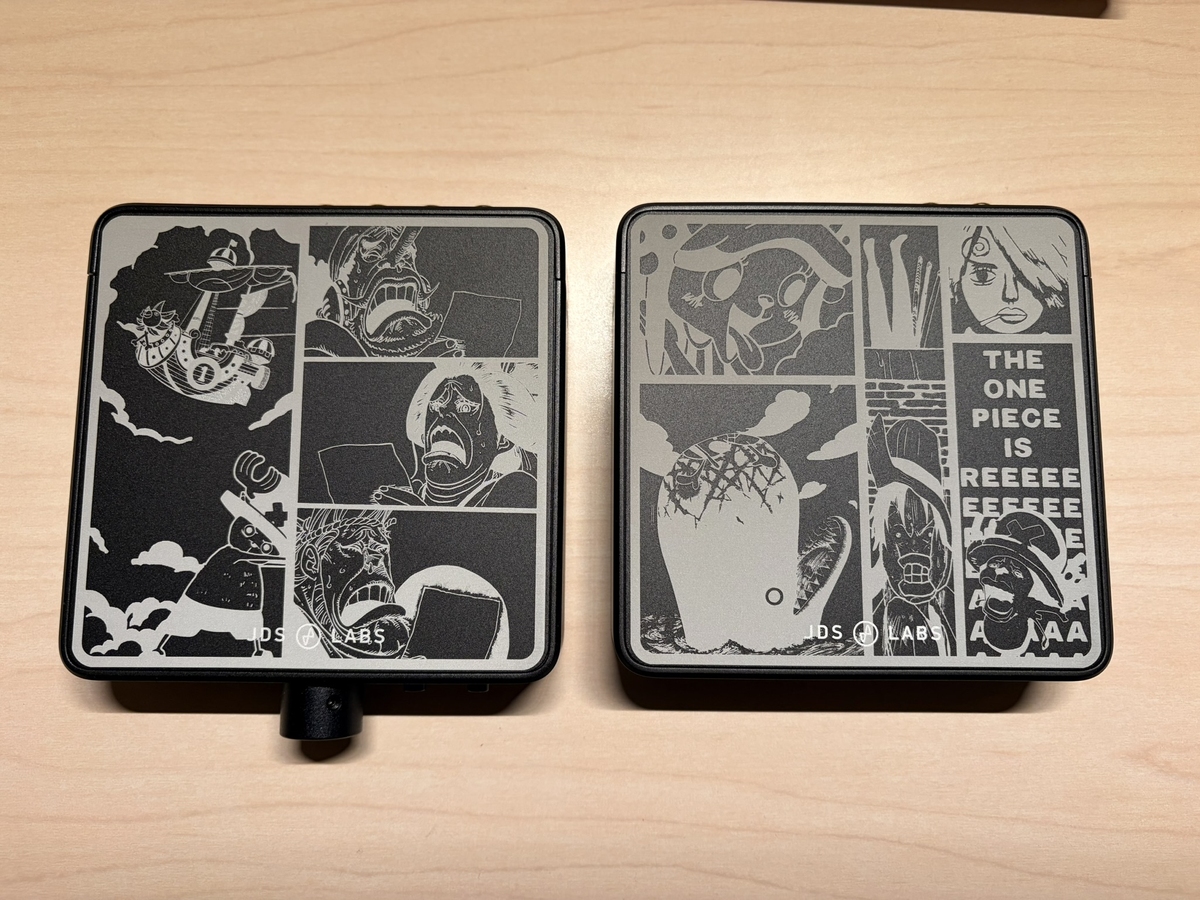

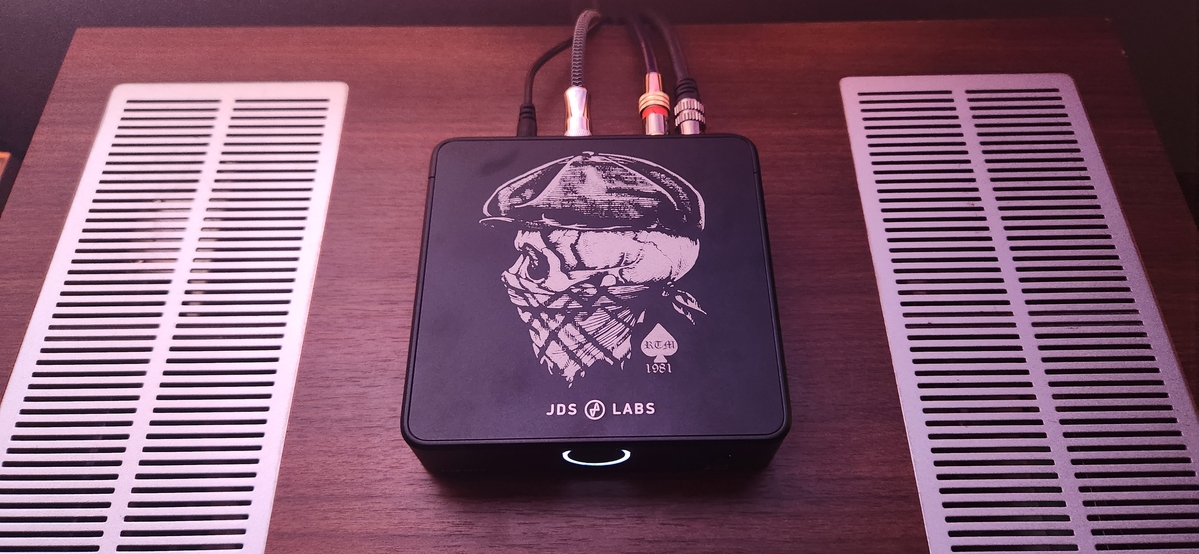

We built Atom Amp 2 for those who demand more. Atom Amp 2 is like Atom Amp+ on steroids. It's housed in an aluminum chassis with an easier to grip knob, featuring both 4.4mm and 6.35mm headphone jacks, failsafe DC protection, and octo-buffers pumping out more than twice the power of Atom Amp+. No noise. Front-mounted controls. Hand matched potentiometers. Custom engraveable. Atom Amp 2, your new go-to headphone amp. This bundle includes everything you need to get started with Atom Amp 2 and Atom DAC 2.
What’s in the bundle?
Atom DAC 2 Specifications
Performance
-
Frequency Response, 20Hz-20kHz +/- 0.12dB
-
SINAD @ 1kHz, 20-22.4kHz 113 dB
-
THD+N, 20Hz-20kHz < 0.0004%
-
SNR, 20Hz-20kHz 117 dB
-
IMD CCIF, 19/20 kHz -6 dBFS -105 dB
-
Noise, A-Weighted -111 dBV
-
Dynamic Range, AES17, A-Weighted 119 dB
-
Linearity Error -90 dBFS -0.05 dB
-
Crosstalk, 1kHz, 100k Input -121 dB
-
USB Jitter Components @ 12kHz -129 dB
-
Maximum DAC Line-Output, 100K 2 VRMS
-
PCB Stackup 4 Layers
Dimensions
-
Average Power Consumption 4W
-
Weight 15 oz (425 g)
-
Case Dimensions 131 x 130 x 34 mm (5.2 x 5.1 x 1.3 in)
Data Support
-
Audio Formats (USB) 16/44.1kHz thru 32/384kHz PCM, DSD64-DSD128
-
Audio Formats (TOSLINK) 16/44.1k thru 24/192k PCM
-
USB Interface UAC2 with UAC1 Fallback
UAC1 supported by USB Isolator, sold separately.
-
USB Driver OS Support Windows 7/8/10/11, macOS, Linux, Android, iOS, PS4/PS5, Nintendo Switch
Appropriate cables are required for Android, iOS, and PS5, and Win 7/8
Connectivity
-
Digital Inputs USB Type C and TOSLINK
-
Line Output RCA
Atom Amp 2 Specifications
Performance
-
Frequency Response, 20Hz-20kHz +/- 0.01dB
-
SINAD @ 2VRMS, 1kHz 120 dB
-
SINAD @ 50mV, 1kHz 93 dB
-
SNR (20-20kHz) 124 dB
-
IMD SMPTE -97 dB
-
Noise (20-20kHz) 1.33 μV
-
Crosstalk @ 10kHz (RCA Out) -101 dB
-
Input Impedance 10k Ω
-
Output Impedance 0.7 Ω
-
Channel Balance < 0.6 dB
-
Max Continuous Power @ 600Ω 143 mW (9.28VRMS)
-
Max Continuous Power @ 300Ω 286 mW (9.27VRMS)
-
Max Continuous Power @ 150Ω 570 mW (9.25VRMS)
-
Max Continuous Power @ 32Ω 2.65 Watts (9.22VRMS = 26Vpp)
Dimensions
-
Case Dimensions (including knob) 145 x 131 x 34 mm (5.7 x 5.1 x 1.3 in)
-
Average Power Consumption 6W
-
Weight 1 lb (454 g)
Connectivity
-
Headphone Outputs 4.4mm and 6.35mm (1/4")
-
Analog Inputs RCA and 3.5mm
-
Preamp Output RCA
Configuration
-
Dual Gain 1.0 and 4.7x
-
Volume Potentiometer Taper 15A, Hand Matched Gangs
Stack RCA Cables Specifications
Configuration
-
Brand JDS Labs
-
Cable Length 15 cm = 6 in = 0.5 ft
Nominal cable length excludes the gold RCA connectors
-
Connectors 2x Male RCA to Male RCA
-
Plating 24k Gold
-
Cable Diameter 6 mm
