Element IV
$549 $499
Backorder, Reserve Today and Save – Ships After Dec 25
- Covered by our 2-year transferable warranty
Simplified Audio, Reimagined
We’ve reimagined our flagship amp+DAC to create a listening experience you will notice and appreciate. Element IV operates on our third-generation XMOS hardware and firmware, blissfully integrated with our latest discrete optical encoder. You’ll hear perfect channel balance down to the black noise floor. Automatic gain helps you focus on listening rather than button pressing, and an auto-vanishing display presents the essentials while you toggle between USB and Optical inputs and headphone or preamp outputs. Element IV's all new Core™ web app allows you to intuitively tweak 10-band EQ profiles and more. Element IV is designed and built in the USA.
Stock Status: Element IV has sold out 4x faster than expected! We’re currently awaiting the next batch of enclosures, scheduled to ship to JDS Labs on December 30th. Reserve yours today for only $499 USD—please note that the price will increase to $549 once stock is replenished.
We've implemented a Rolling Backorder for orders placed after December 18th. Element IVs will ship in chronological order throughout the month of January.
Gallery
Features
3.2 W of Clean Power
While most headphone listening demands only milliwatts, Element IV's tetradeca output buffers provide over 3200 mW per channel of absolutely clean, distortion-free power. Element IV drives all headphones on the market to extraordinary levels, from balanced armatures to planar magnetics.
Parametric EQ Powered by Core™
Crafted for simplicity, Element IV's fully custom DSP engine supports up to 10 EQ bands in realtime, coordinating perfectly with auto gain. Graphically tweak EQ profiles through JDS Labs Core, and your settings reside on Element IV. No downloads. Yes, your settings persist when you move Element IV to another room, PC, or console.
Auto Gain
We regularly hear from customers fretting over when to use gain. Element IV eliminates this confusion by automatically toggling gain for you at exactly the right volume level. As you turn the knob beyond 0 dB, high gain activates and volume is compensated for a near seamless transition to higher listening levels.
Perfect Channel Balance
Element IV delivers audibly perfect channel balance all the way down to -127.5 dBFS. You'll immediately hear and appreciate soundstage accuracy.
Preamp Outputs
Element IV's preamp outputs allow you to control volume of your powered speakers. Toggle between headphones and speakers by pushing the tactile volume knob. Listening volume and EQ profiles are stored separately for each output mode.
Customizable Buttons
The tactile knob button toggles between headphones and speakers, so there's no need to disconnect cables. You can also configure the buttons as you see fit through JDS Labs Core.

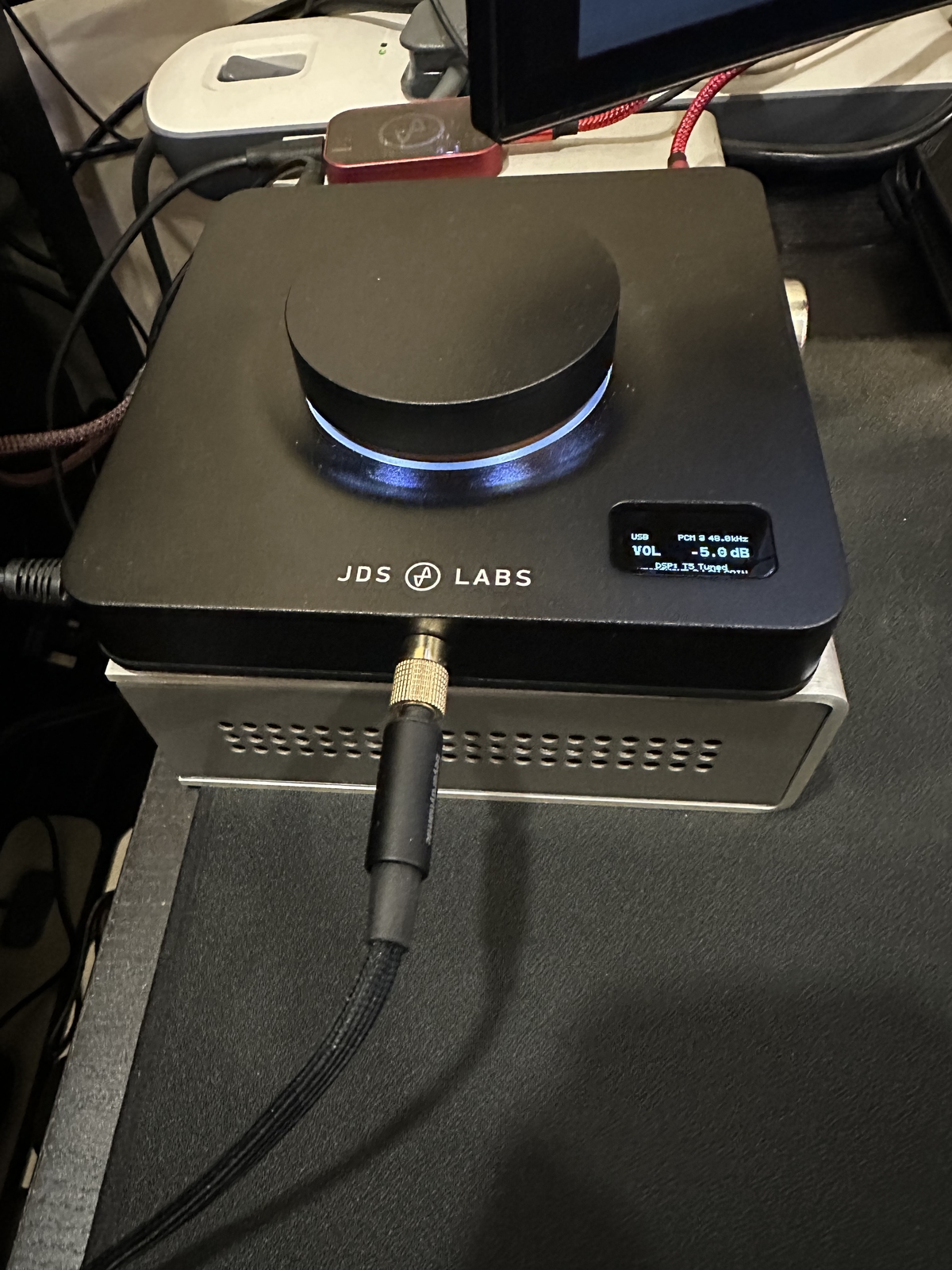

OLED Display + Gorilla Glass
The display momentarily presents status information while you interact, then powers down to minimize distractions. While you can adjust all settings through the OLED menu, we've developed JDS Labs Core to give you a vastly better experience! Element IV's display is protected by tinted Gorilla Glass.
DC Protection and Safety
Element IV relies on our proven, analog DC detection circuitry with failsafe relay muting to protect your headphones. Relay muting also eliminates pops and thumps during startup. And for extra safety, independent processors continuously monitor internal communications and verify volume state of the DAC.
USB Type C
Element IV's USB Type C input receives up to 32/384kHz PCM over our third-generation XU316 based UAC2 engine, with ASIO and DSD support. While we claim no measurable benefit of high sampling rates, optional ASIO drivers will satisfy your pursuit of high fidelity listening. 10 EQ bands are supported from 44.1-192kHz and 2-bands are supported at higher PCM rates.
UAC2 or UAC1 for Consoles
You can toggle between UAC2 and UAC1 mode from the options menu to support PS5, Nintendo Switch, or legacy operating systems. This flexibility makes it easy to enjoy Element IV with any operating system.

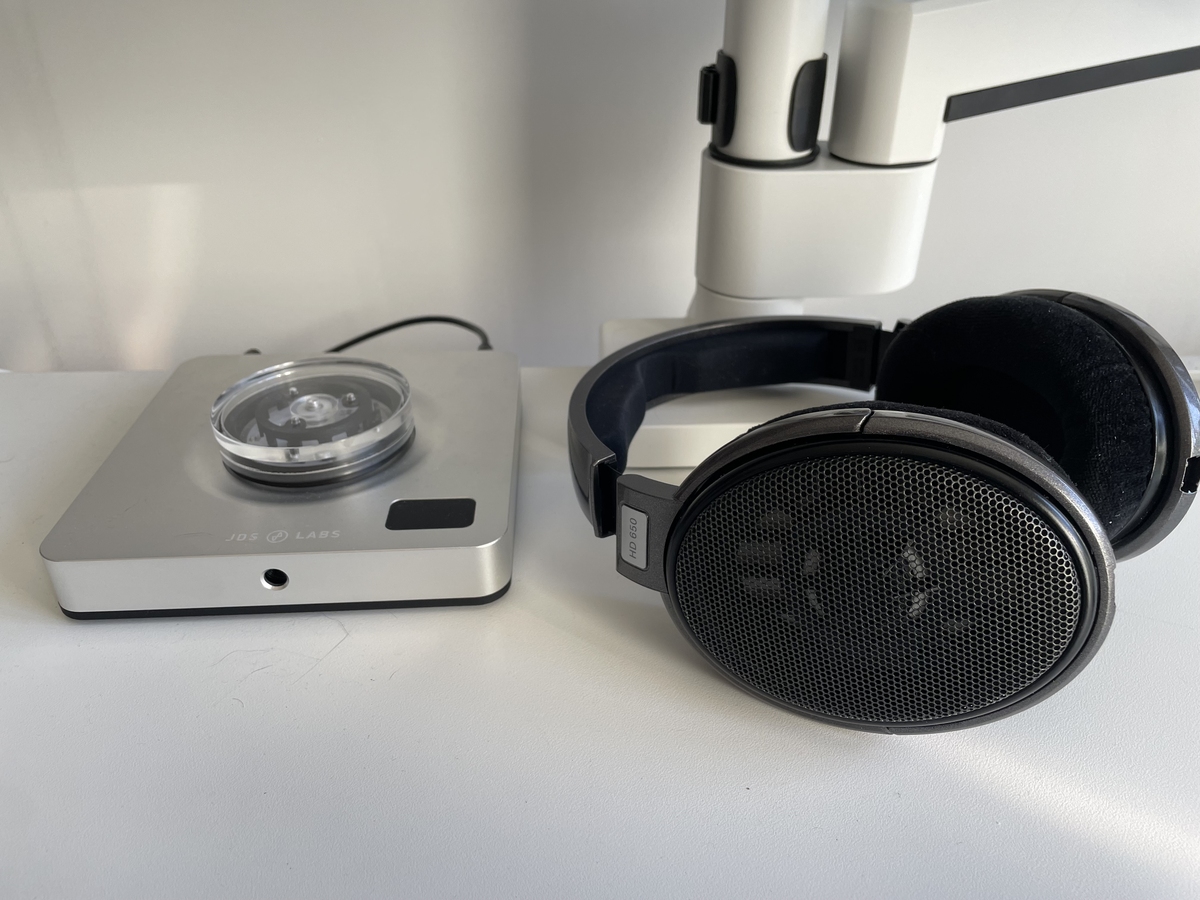

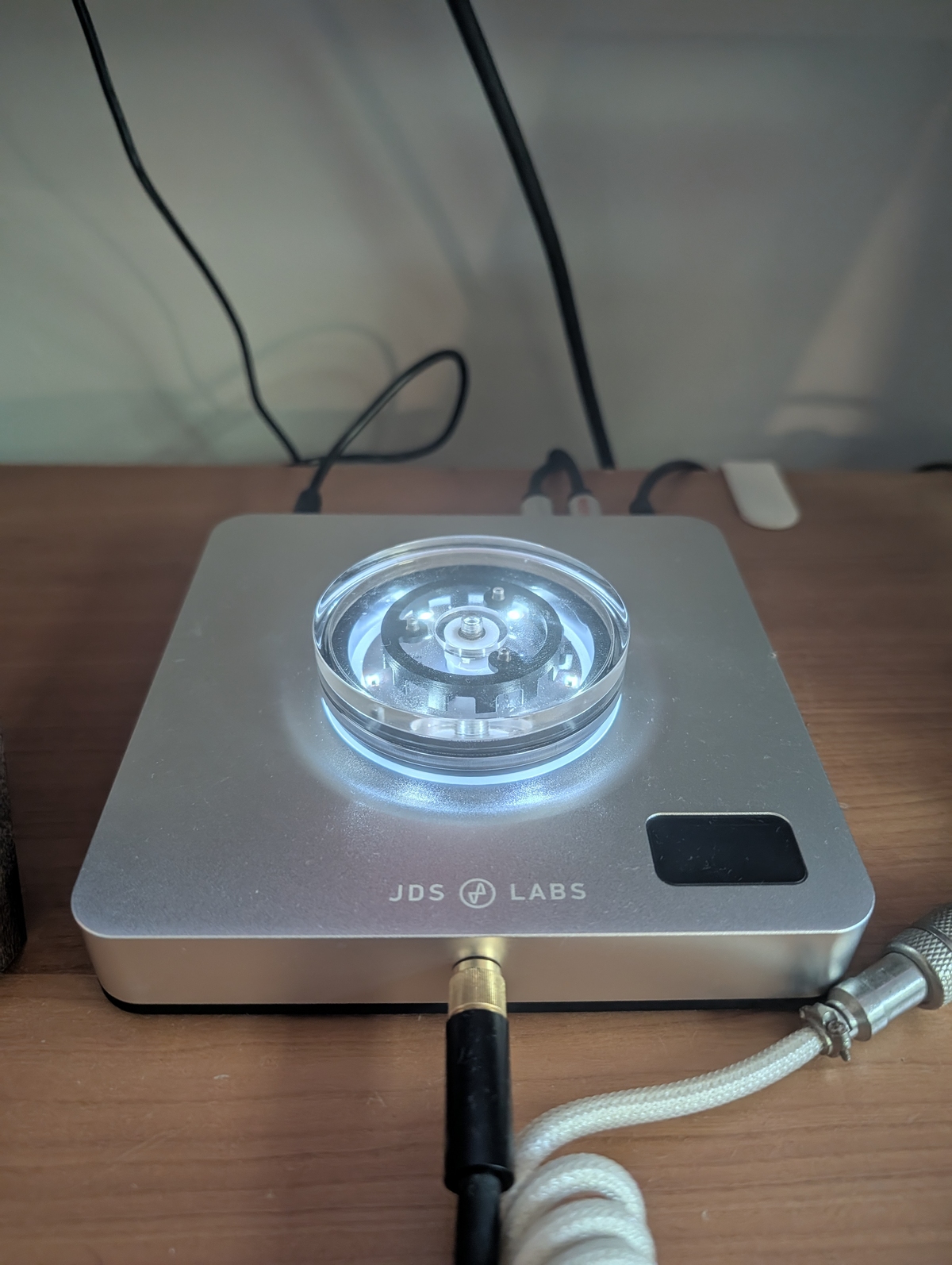

Discrete Optical Encoder - A Knob like No Other
Element IV contains our second generation discrete encoder, with 50% more fins for faster volume knob response, and a large steel shaft for buttery smooth rotation without wobble. Optical sensors detect motion with a lifespan in the millions of turns. You will not find a better knob on the market.
Mains Isolation and +/-17V Rails
Element IV's amplifier and DAC are entirely powered by its external AC transformer, with 13 regulators ensuring consistent rail voltage, super low ripple, and mains isolation. The D/A stage is powered by a dedicated, ultra low noise LT3045 regulator.
Customer Reviews
Specifications
Performance
- Frequency Response 20-20kHz +/- 0.1 dB
- SINAD, 1kHz Low Gain 117 dB 1.
- SINAD, 1kHz High Gain 118 dB
- THD+N Sweep 20-20kHz < 0.00025 %
- IMD CCIF 19/20 kHz -6 dBFS -118 dB
- IMD SMPTE @ -20dBFS -95 dBFS
- Signal to Noise Ratio 120 dB
- Noise (low gain) 2 uV
- Dynamic Range (A-Weighted) 123 dB
- Linearity @ -90 dBFS +/- 0.02 dB
- Crosstalk @ 0 dBFS, 100k RCA -127 dB
- Jitter Components – USB @ 12kHz, DPLL 7 -126 dB
- Channel Balance, -∞ to 0 dBFS +/- 0.01 dB
- Output Impedance < 1 Ω
- Max Continuous Power @ 600 Ω 174 mW (10.22 VRMS)
- Max Continuous Power @ 150 Ω 692 mW (10.19 VRMS)
- Max Continuous Power @ 32 Ω 3.2 W (10.18 VRMS)
Dimensions
- Enclosure Dimensions 5.8 x 5.8 x 1.6 in
- Weight 1 lb 4 oz (0.57 kg)
Data Support
- USB Interface UAC2 and UAC1 Fallback 2.
- Operating Systems Windows XP/7/8/10/11, macOS, Linux, Android, iOS, PS5, Nintendo Switch 3.
- USB Sampling Rates PCM: 16, 24, 32-bit @ 44.1, 48, 88.2, 96, 176.4, 192, 384 kHz; DSD64-128 4.
- S/PDIF (Optical) Sampling Rates 16-24 bit @ 44.1, 48, 88.2, 96, 192 kHz 5.
Connectivity
- Headphone Output 6.35mm (1/4") 6.
- Preamp Outputs RCA
- Inputs USB Type C and TOSLINK
Configuration
- Gain Auto Toggling 1.0x and 5.0x (+14dB)
- Volume Attenuation Discrete Encoder, 255 steps
- 1. All measurements observed via USB C @ 48k with Synapse
- 2. UAC2 or UAC1 can be selected in the Options menu
- 3. Appropriate cables are required for Android and iOS. Must use UAC1 mode with Win XP/7/8, PS4, or PS5.
- 4. 44.1-192k supports 10 EQ bands, and 2 EQ bands are supported beyond 192k
- 5. Some TOSLINK sources are unable to reliably transmit at 192kHz.
- 6. 4.4mm Headphone Output available upon request, same 3200 mW output! Custom build may delay order by ~1 week.
Packaged Items
- JDS Labs Element IV
- 17VAC 1.4A Power Supply
- USB A to C Cable - 3ft (1m)
- JDS Labs Core™
Drivers
-
XMOS Driver v5.72 for Win 10/11
XMOS driver v5.70 supports Windows 10/11 under x86/x64/arm64 and is optional. No drivers are required for macOS, Linux, or Windows 10/11.
This driver enables ASIO support, provides the ability to view and adjust Buffer Settings (latency), supports 16/24/32-bitrates, and adds full DSD64-128 support to Atom DAC+, Atom DAC 2, EL DAC II+, and Element III (MK2), and Element IV.
All XMOS based JDS Labs DACs are supported, including:
- Element IV
- Element III (MK2)
- Atom DAC 2
- Atom DAC(+)
- EL DAC II(+)
- Element II
This driver is developed and maintained by Thesycon, and licensed to JDS Labs. Please find the full change log at TUSBAudio_history.txt.
