EL Amp
This product has been discontinued. You might be interested in EL Amp II+.
EL Amp II+
$249.00
- Covered by our 2-year transferable warranty
SIMPLIFIED DESKTOP AUDIO

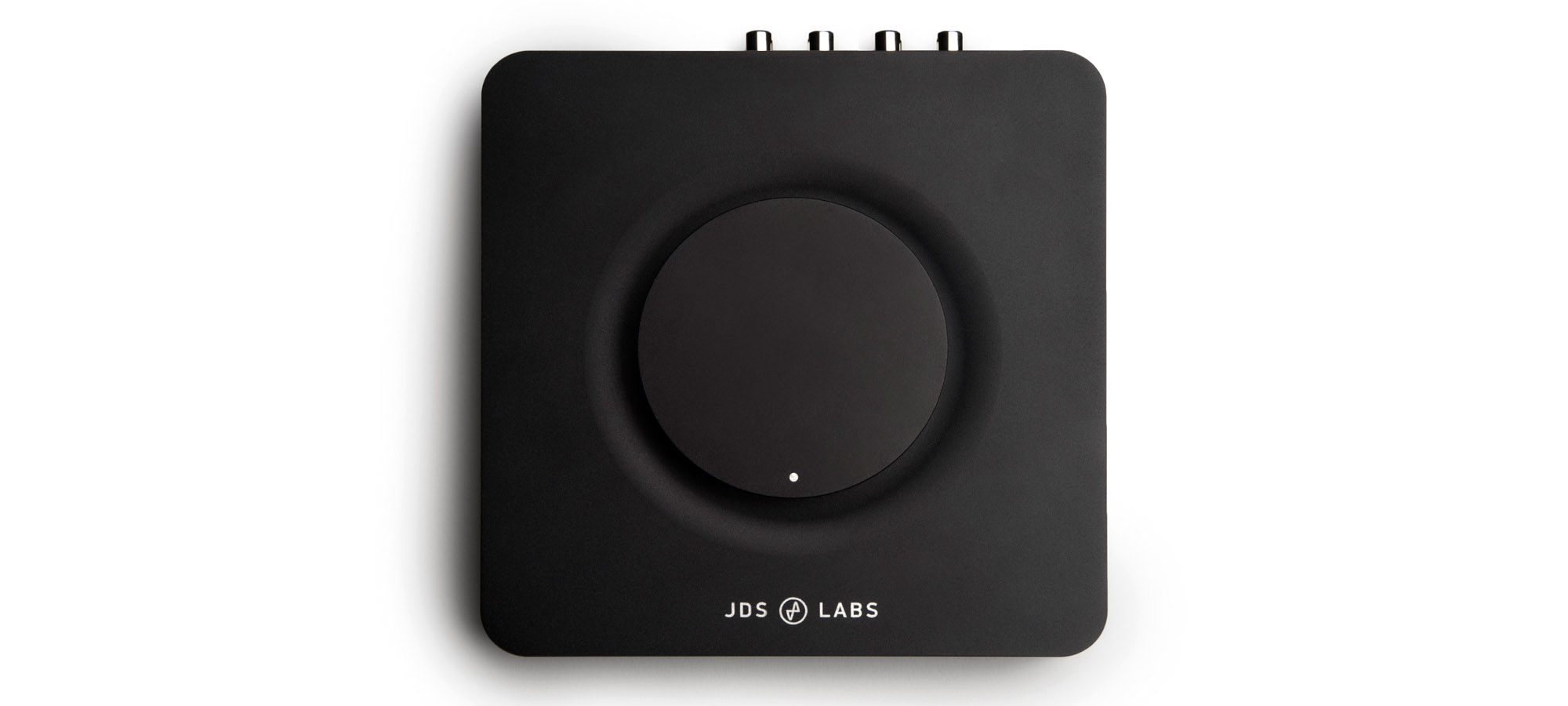

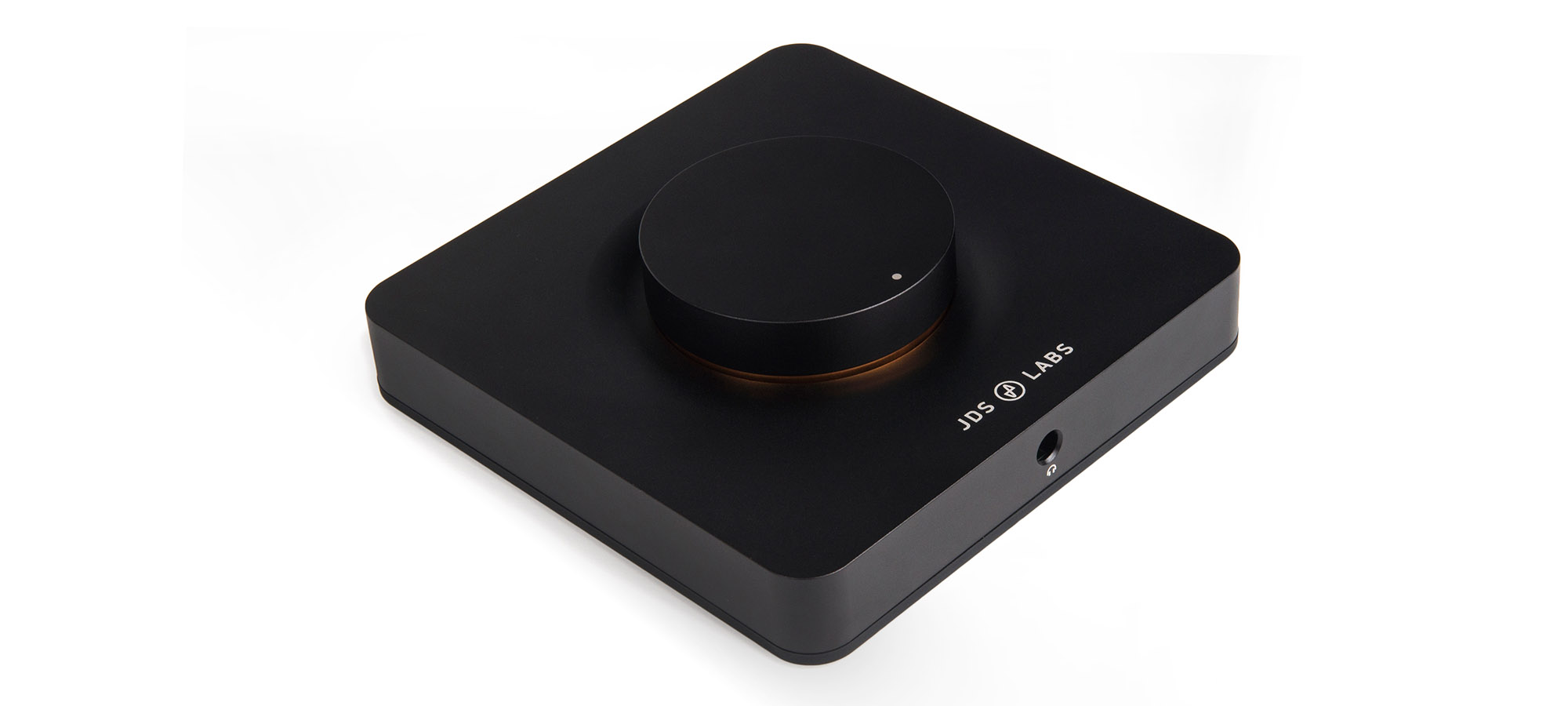

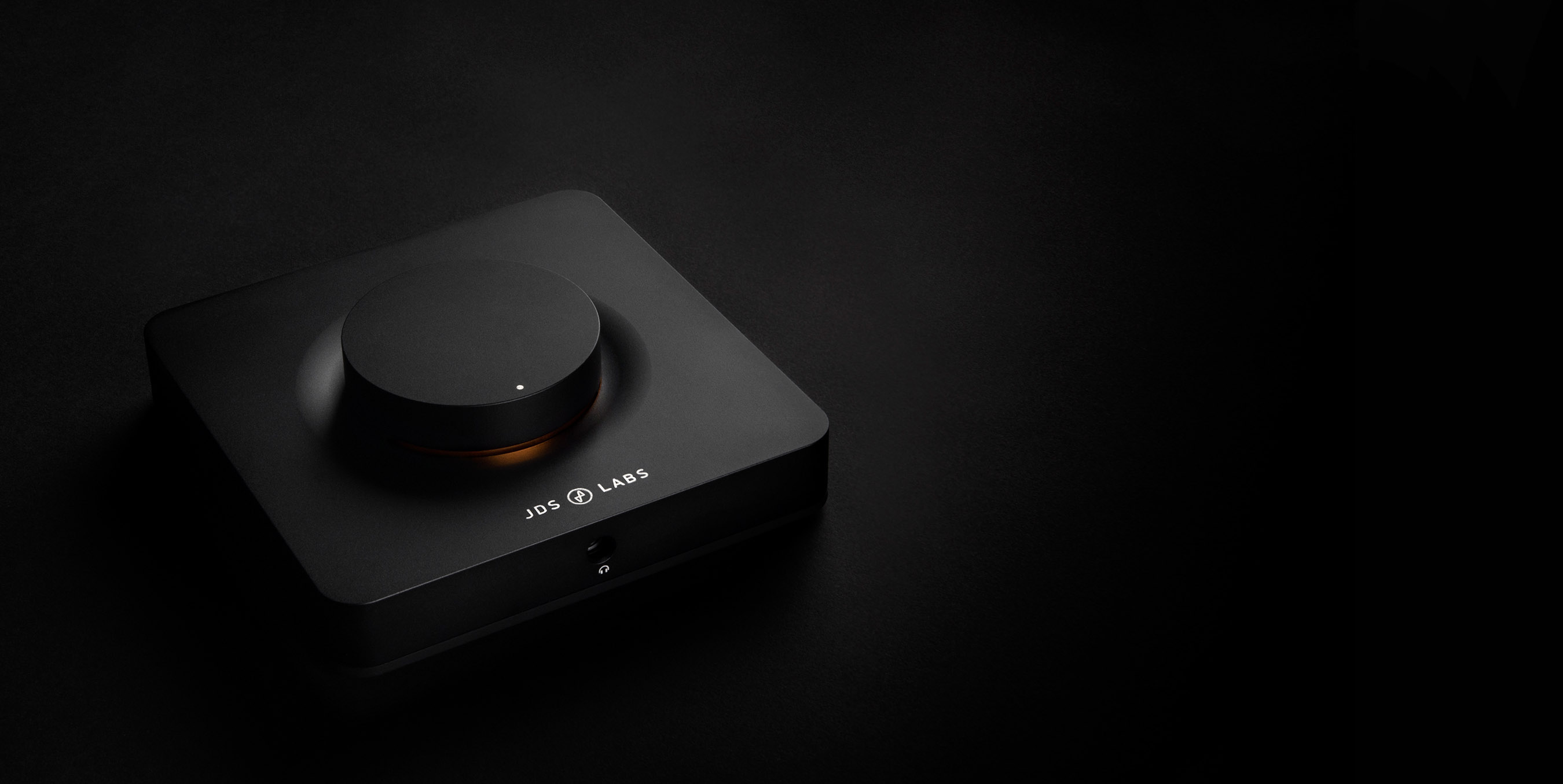

We designed the Element Line to simplify your desktop audio experience. EL Amp combines a powerful headphone amplifier with a comfortable knob, housed in a precision machined chassis. Enjoy seamless transitions between your powered speakers and headphones.
"This amp offers a really terrific value. When the well detailed, ever so slightly warm EL DAC meets the clean, linear EL amp, it is just pure, musical goodness. I'm not sure what, if anything, wouldn't sound right as rain when connected to these two."
"More than enough to handle anything and everything I threw at it. It responded in spades. Not only is it powerful, it's absolutely clean."
Gallery
Features
SMART LOGIC
Microprocessor controlled relays completely eliminate turn on/off pops and thumps produced by lesser amps.
ULTRA HIGH POWER
With 30V rails and peak output in excess of 1.5W, EL Amp drives all headphones on the market to extraordinary levels, from balanced armatures to planar magnetics.
REFERENCE GRADE SOUND
EL Amp exceeds TPD criteria, outmatching our baseline for audible perfection.
LOW OUTPUT IMPEDANCE
EL Amp's extremely low output impedance ensures transparent frequency response for all headphone loads.
DUAL GAIN
Low gain of 1.0x is well suited to driving efficient IEMs, while High gain easily powers demanding full size sets.
AUTO LINE OUTPUT
Automatic Line-Output allows you to toggle between headphones and powered speakers at the push of a button.
Customer Reviews
Specifications
Performance
- Frequency Response 20Hz-20kHz +/- 0.1dB
- THD+N 1kHz, 150 Ω 0.0009%
- IMD CCIF 19/20kHz 150 Ω 0.0004%
- IMD SMPTE 150 Ω 0.0005%
- Noise, A-Weighted -108 dBu
- Crosstalk @ 150 Ω -67 dB
- Output Impedance 0.1 Ω
- Channel Balance +/- 0.56 dB
- Max Continuous Output, 600Ω 140 mW (9.4VRMS)
- Max Continuous Output, 150Ω 505 mW
- Max Continuous Output, 32Ω 1.1 W
- Peak Output Power, 32Ω 1.5W
Dimensions
- Case Dimensions 5.8 x 5.8 x 1.6 in
- Weight 18 oz
Connectivity

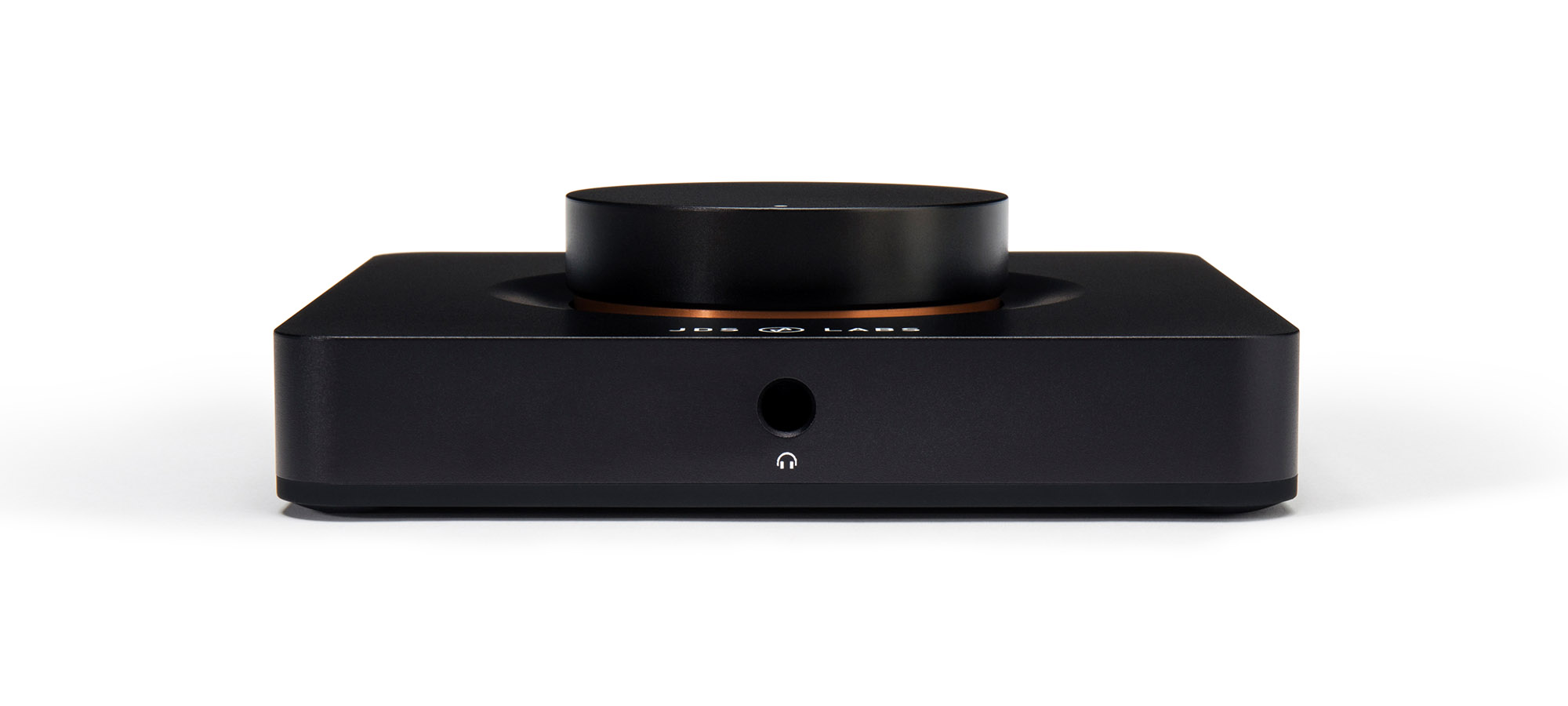

- Headphone Output 6.35mm (1/4")

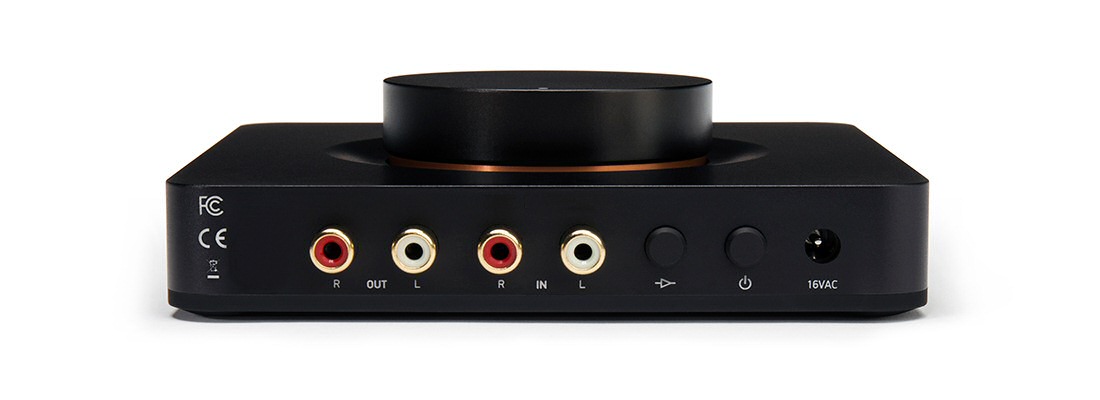

- Analog Input RCA
- Line-Output RCA
Packaged Items
- EL Amp
- 16VAC Power Adapter
