UAC2 Ground Loop Isolator

Synapse Max

$79.00

In Stock

10x More Isolation Power

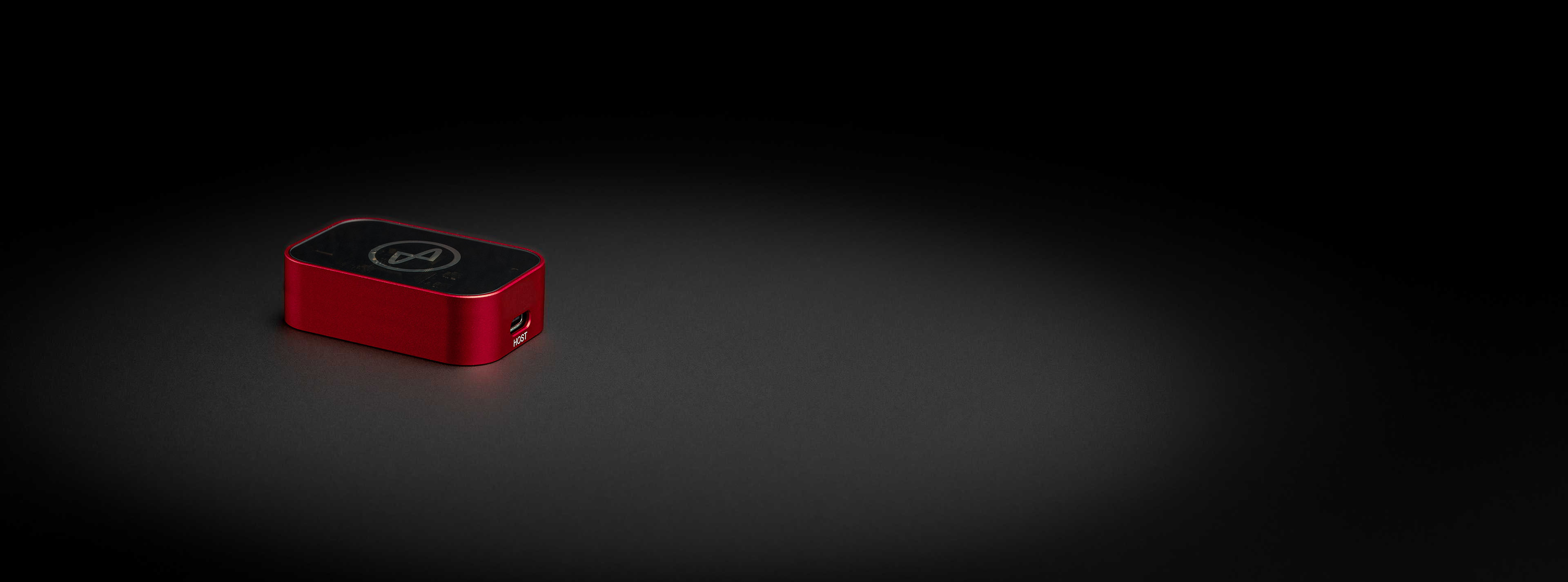

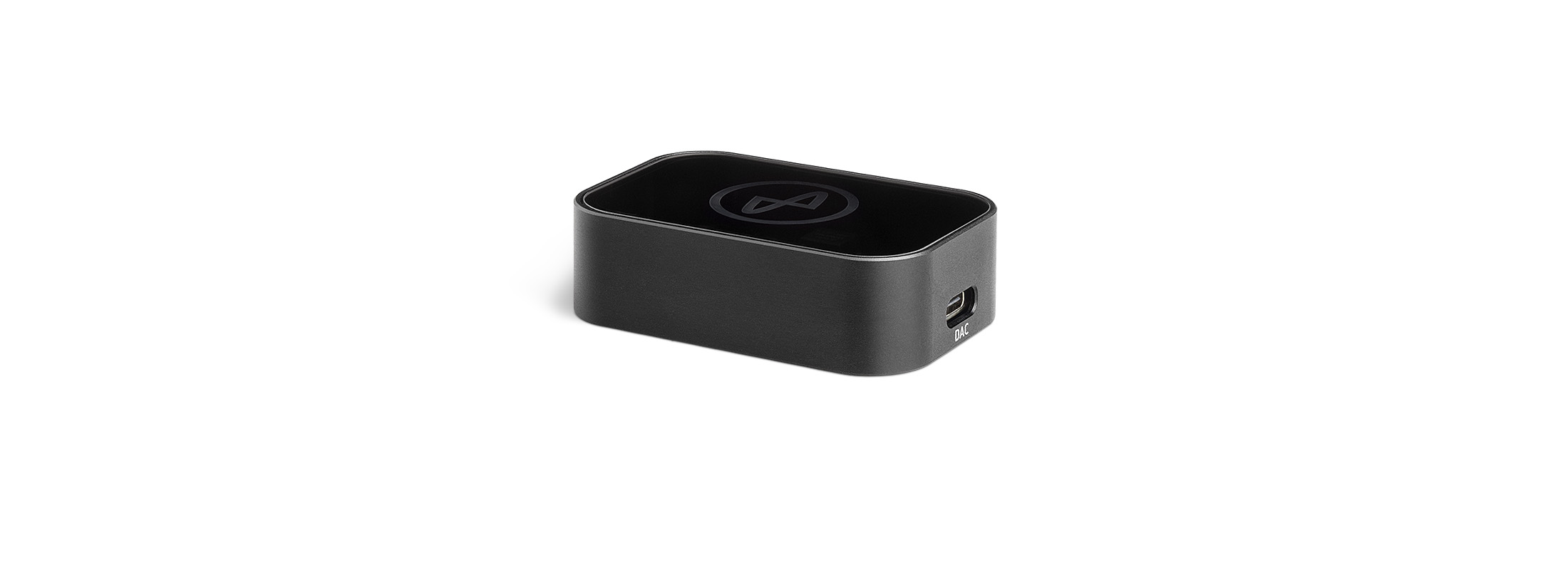

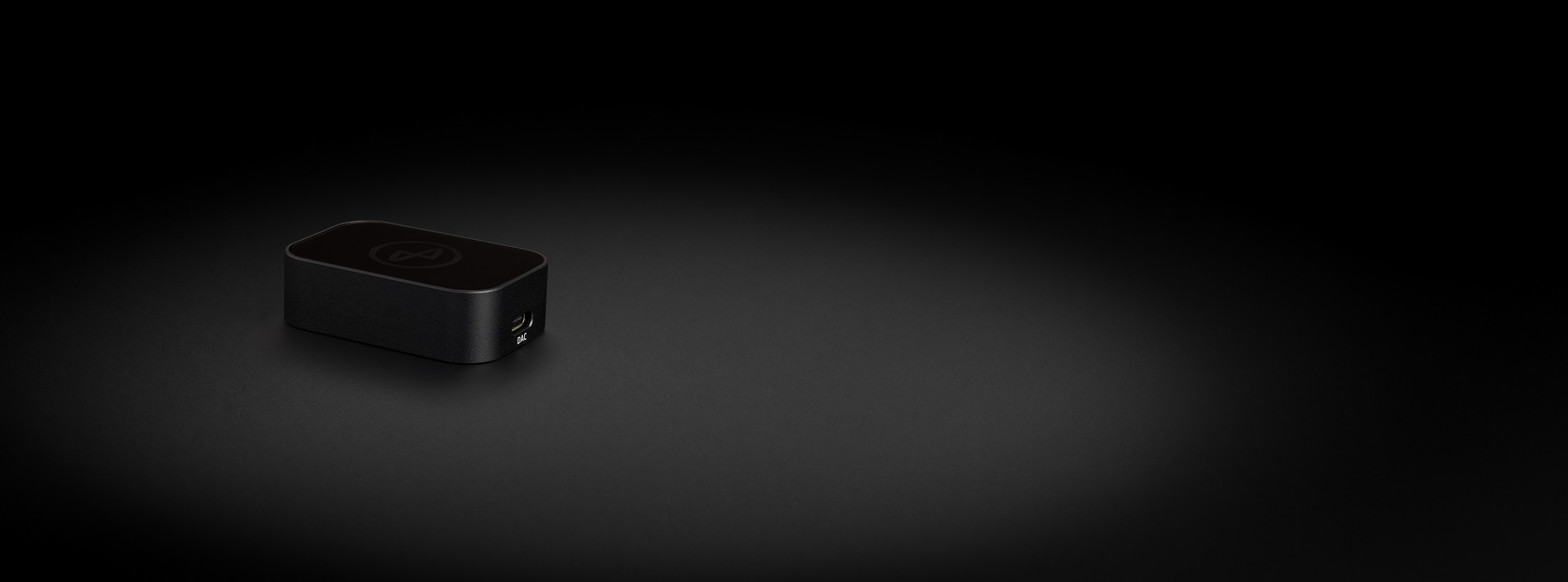

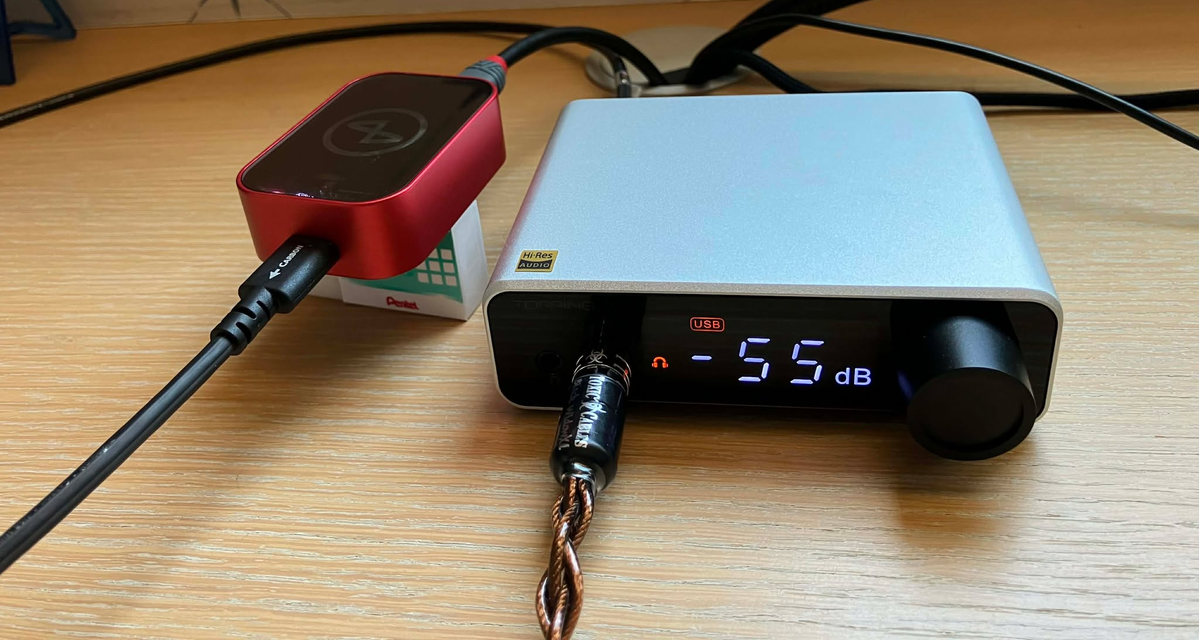

Synapse MAX is a UAC2 compliant galvanic isolator with 10x more output power capacity than Synapse. It's built to eliminate ground loop noise from bus-powered audio interfaces and DACs without compromising USB sampling rates. Its ISOUSB211 enhances performance by cancelling USB signal loss and optimizing the USB timing diagram, while supplying super clean, transformer isolated power to your DAC, mixer, interface, or other UAC2 device. Synapse MAX features USB C inputs and outputs, housed in a sleek glass-topped, CNC-machined aluminum enclosure. For your convenience, Synapse MAX includes all accessories you will need to connect to standard USB ports.

Features

480 Mbps USB Rate

Synapse transmits equalized, Hi-Speed USB data at 480 Mbps, fully supporting UAC2 audio devices.

Galvanic Isolation

Synapse Max fully isolates your audio equipment from your PC, supplying up to 1000mA of USB power through its low noise, transformer isolated LDO.

Eliminates Ground Loop

No optical input? No worries! Synapse effectively eliminates ground loop noise from peripherals like powered monitors, providing a clean audio experience.

1A of USB Power

Synapse Max delivers 10x the power of Synapse, allowing you to isolate demanding, bus-powered audio interfaces, DACs, and DAPs.

Specifications

Dimensions

  • Size 59 x 39 x 18 mm
  • Size 2.3 x 1.5 x 0.7 in
  • Weight 82 g

Connectivity

  • USB Connectors Type C
  • Max USB Current 1000 mA
  • Max USB Rate Hi-Speed (480 Mbps)

Configuration

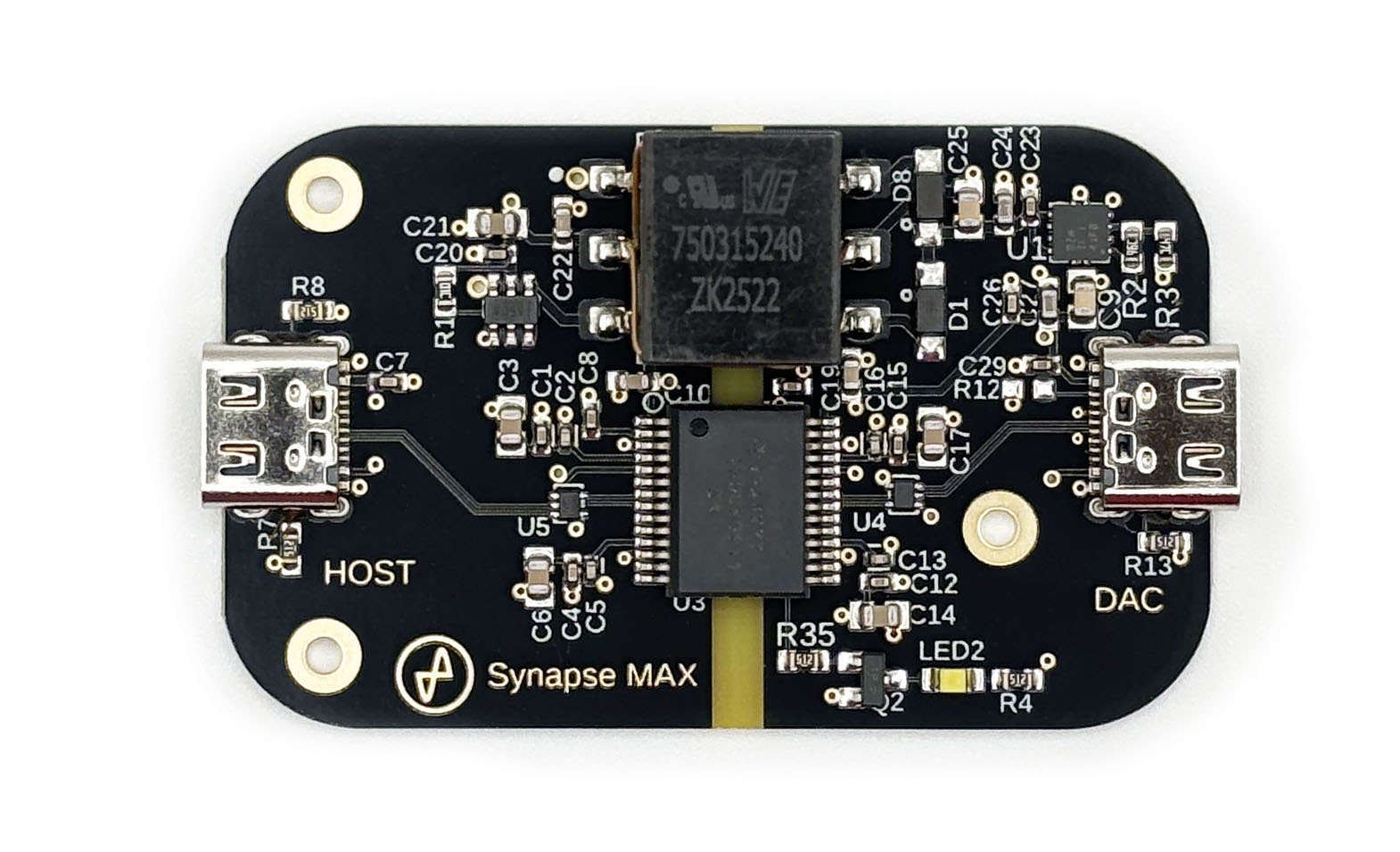

  • Chipset ISOUSB211
  • Output Regulator TPS737
  • Transformer Isolation 5000 VRMS
  • ESD Protection +/- 25 kV

Packaged Items

  • JDS Labs Synapse Max
  • USB Cable - C to C, 25 cm Length
  • USB Adapter - Female C to Male A
  • USB Adapter - Male C to Female A
