UAC2 Ground Loop Isolator
Synapse
$69
In Stock
- Covered by our 2-year transferable warranty
Clean, Next Gen USB Isolation
Synapse is a UAC2 compliant galvanic isolator, built to eliminate ground loop noise without compromising USB sampling rates. Its ISOUSB211 enhances performance by cancelling USB signal loss and optimizing the USB timing diagram, while supplying super clean, transformer isolated power to your DAC, mixer, interface, or other UAC2 device. Synapse features USB C inputs and outputs, housed in either a sleek glass-topped, CNC-machined aluminum enclosure or a 3D printed chassis. For your convenience, Synapse includes all accessories you will need to connect to standard USB ports.
Gallery
Features
480 Mbps USB Rate
Synapse transmits equalized, Hi-Speed USB data at 480 Mbps, fully supporting UAC2 audio devices.
Galvanic Isolation
Synapse fully isolates your audio equipment from your PC, supplying up to 100mA of USB power through its low noise, transformer isolated LDO.
Eliminates Ground Loop
No optical input? No worries! Synapse effectively eliminates ground loop noise from peripherals like powered monitors, providing a clean audio experience.

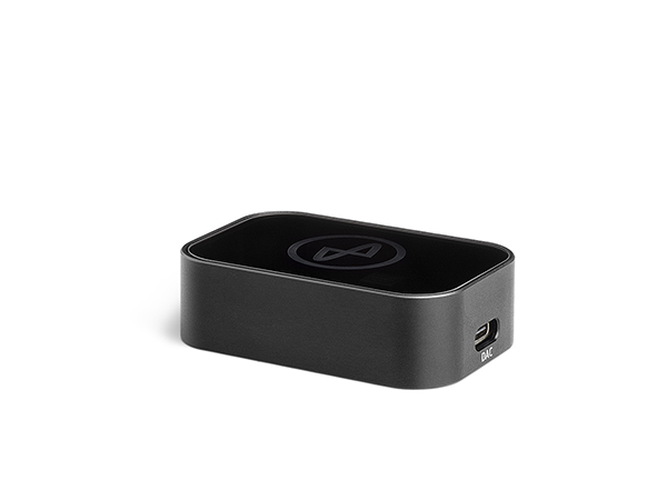

Compact Enclosure
Designed to save space, Synapse is built in our smallest footprint enclosure yet, seamlessly fitting inline with your USB device.
Specifications
Dimensions
- Size 59 x 39 x 10 mm
- Size 2.3 x 1.5 x 0.4 in
- Weight 28 g CNC / 20 g 3D-printed
Connectivity
- USB Connectors Type C
- Max USB Current 100 mA 1.
- Max USB Rate Hi-Speed (480 Mbps)
Configuration
- Chipset ISOUSB211
- Output Regulator TPS7A 5V LDO
- Transformer Isolation 2500 V
- ESD Protection +/- 25 kV
- 1. You may connect any USB device which consumes < 100mA @ 5V, including all current JDS Labs DACs. Devices consuming > 100 mA will not be harmed, but will not establish a connection.
Packaged Items
- JDS Labs Synapse
- USB Cable - C to C, 25 cm Length
- USB Adapter - Female C to Male A
- USB Adapter - Male C to Female A
